My 45-70 bullet
Hornady. In the .45-70 the 350 grain bullet weight provides a great balance of high velocity for fast killing, optimum trajectory plus adequate weight and sectional density for use on medium weight game. Hornady offer the 350 grain round nose Interlock and flat point Interlock Bullets. The 350 grain RN Hornady Interlock was originally designed as a fast expanding medium game load for the .458 Winchester. Although various authorities suggest that round nosed bullets should not be used in tube magazines and insist on the use of flat point bullets, the 350 grain round nose Interlock has very soft lead. Even if an empty primed .45-70 case is placed in a vice and the 350 grain Interlock is held against the primer and struck with a hammer, the soft nose of the Interlock does not ignite the primer. This bullet has very large scores in the jacket to promote rapid but uniform controlled mushrooming. The 350 grain round nose Interlock produces deeper penetration than its 300 grain counterparts but is just as good at producing fast kills down to impact velocities of 1600fps. For those wanting an all round load for light through to Elk sized game of up to 700lb (320kg), the 350 grain round nose Interlock is a good performer.
For light bodied game Hornady offer a 300 grain jacketed hollow point bullet, giving very fast, vivid expansion. At impact velocities of above 2100fps this projectile is very forgiving with shot placement and game struck in the rearmost ribs often go down immediately. Penetration of the Hornady at impact velocities of above 2100fps is not ideal for tail on shots but wounding is so severe as to anchor light to medium weight game immediately. However, in these circumstances the Hornady maintains its integrity with retained weights of between 200 and 210 grains. In high pressure loads the 300 grain bullet is best suited to game weighing under 180lb (80kg) and up to a maximum of around 220lb (100kg). At lower velocities this bullet is quite suitable for game weighing between 330 and 400lb (150 to 180kg), again with respect to the superior integrity of the Hornady.
The 300 grain Nosler Partition is the broadest wounding, fastest killing premium bullet available to hand loaders. In recent years this projectile has developed a small but staunch following among .45-70 users. The 300 grain Nosler features a soft nose, rather than the hollow nose found on the Hornady and Sierra. While sectional density is very low this projectile is quite reliable in comparison to other low SD Partition bullets. That said, at all velocity parameters the 300 grain Partition PP is best utilized on medium game and perhaps up to game no larger than Elk as its low SD does limit penetration on heavily raking shots.
Hard cast bullets for the .45-70 are manufactured by several companies with Beartooth bullets being a prime example at this time of writing. Best results are achieved when using a bullet with a meplat (flat point) diameter of at least .300". As previously suggested, optimum wounding is achieved at impact velocities of around 1700fps and faster while penetration can be enhanced by focusing on bullets weighing at least 400 grains. Beyond this, as has been reiterated many times within this knowledge base, the key to fast killing when using non-expanding bullets is to keep shots well forwards and aim to break bone.
As stated, reloading manuals generally split reloading data for the .45-70 into three categories, Trapdoor Springfield, modern lever action and Ruger No.1 or Bolt action custom rifles. The most versatile powders are those in the H4198, IMR4198 and ADI2207 range however some hand loaders also find good results with slightly slower H322. |
|
|
The Good Old .45-70 Government
By Chuck Hawks |
 |
The .45-70-405 Government was introduced in 1873, when it became the official U.S. military cartridge. It was initially chambered in the military Model 1873 Springfield (Trapdoor) single shot rifle. The old fashioned nomenclature stood for .45 caliber-70 grains of black powder-405 grain bullet weight. There was also a .45-70-500 variant, loaded with a 500 grain bullet. Soon, many superior hunting and target style single shot rifles were being chambered for the .45-70.

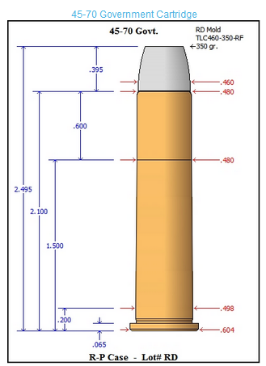

The .45-70 cartridge is built on a straight walled case with a moderate .0255" of body taper. It has a large, fairly thick rim .608" in diameter that is typical of rimmed black powder cases. The case length is 2.105" and the loaded cartridge must not be more than 2.55" long if it is to be used in repeating rifles.
The .30-40 Krag superceded the .45-70 in 1892 as official U.S. military cartridge. The Krag was the first cartridge designed for smokeless powder adopted by the U.S. Army. The 45-70 was very popular as a sporting rifle cartridge in the last quarter of the 19th century, and so it made the transition to smokeless powder. It retained enough popularity to survive in the age of high velocity smokeless powder sporting cartridges ushered in by the .30-30 Winchester.
Winchester chambered their powerful Model 1886 lever action rifle for the .45-70, giving the cartridge a home in a popular repeater, which carried it well into the 20th century. The late gun writer Elmer Keith, for one, wrote many kind words about the old .45-70 during his long career. He helped to keep it alive through the 1930's, 40's, and 50's. Many surplus Siamese Mauser bolt action rifles were rechambered for .45-70, and also helped keep the cartridge alive.
The modern resurgence of interest in single shot rifles was initially sparked by the introduction of the Ruger No. 1. The subsequent introductions of the Browning 1885 High Wall, a number of Trap Door Springfield reproductions, and Sharps rifle reproductions helped fan the flames. All of these rifles were chambered for the .45-70, and helped put the old cartridge on the comeback trail.
In 1972 Marlin chambered their big bore version of the 336 lever action, called the 1895, for the .45-70. In the late 1990's, Winchester reintroduced the Model 1886 lever action in .45-70. The advent of powerful repeating rifles in .45-70 gave the cartridge a major shot in the arm. The .45-70 was alive and well.
In 1998 Remington reintroduced the single shot No. 1 Rolling Block rifle. A couple of modern double rifles are being chambered for .45-70. Even some single shot pistols and one enormous derringer (!) are chambered for the old cartridge. At the turn of the 21st century the old .45-70 is probably available in more new guns than it has been for about 85 years. The .45-70 has made a remarkable comeback.
The very wide variety of action types, age, and condition of rifles for the .45-70 cartridge has resulted in three pressure levels of loads. The lowest pressure loads are for 1873 Springfield rifles, reproductions thereof, and other rifles of similar strength. These loads are held to pressures around 25,000 cup, essentially similar to the original loads for which these rifles were designed. Modern factory loads are intended to be safe in these rifles. The traditional factory load is a 405 grain bullet (BC .214, SD .272) at a MV of 1330 fps, and a ME of 1590 ft. lbs. This is a very moderate load that kills well because of the penetration of its big, heavy bullet. It has been used on all North American game, but today should be restricted to animals of around 400 pounds or less.
Although it can be very accurate, this is a short range load. From a scoped rifle sighted for a +/- 3" maximum bullet deviation from the line of sight, the trajectory should look like this: +3" at 65 yards, +1.3" at 100 yards, -3" at 131 yards, and -22.9" at 200 yards. The maximum point blank range (MPBR) of this load is 131 yards.
In an attempt to improve the low pressure .45-70 load, the factories have been loading a 300 grain JHP bullet (BC .171, SD .204) at around 1,810 fps. At that velocity, according to Remington figures, the ME is 2182 ft. lbs. This makes the .45-70 a sort of super .30-30 deer rifle.
The trajectory of this load allows a scoped rifle to be sighted as follows: +3" at 82 yards, +2.7" at 100 yards, -3" at 162 yards, and -10.2" at 200 yards. This makes the 45-70 about a 162 yard rifle for use on deer size game.
According to the third edition of the Hornady Handbook of Cartridge Reloading 45.3 grains of IMR 3031 powder can drive a Hornady 300 grain JHP bullet to a MV of 1500 fps, and 52.0 grains of IMR 3031 can drive the same bullet to a MV of 1800 fps. This essentially duplicates the factory loads. These and all Hornady loads to follow used Winchester brass and Federal 210 primers.
The second level of loads are for the new Marlin 1895 lever action rifles. In these loads pressures run up to 40,000 cup. They are only available to those who reload their own ammunition. These reloads can drive a Hornady 350 grain RN bullet to a MV of 1400 fps with 32.0 grains of IMR 4198 powder, and a MV of 1900 fps in front of 45.3 grains of IMR 4198. These velocities were taken in the 22" barrel of a Marlin 1895 rifle. According to the Hornady Handbook, Sixth Edition these loads are adequate for ". . . any North American game at moderate range."
The trajectory of the 350 grain bullet is similar to that of the new .450 Marlin cartridge. From a scoped Marlin rifle the 350 grain RN bullet at 1900 fps can be zeroed as follows (Hornady figures): +2.4" at 50 yards, +3.2" at 100 yards, and 0 at 150 yards, and -8.0" at 200 yards.
Cor-Bon has kicked over the traces and introduced two powerful .45-70 loads intended for strong rifles only. They are suitable for new Marlin and Winchester lever action rifles. The first and most useful of these uses a 350 grain Bonded-Core Soft Flat Point bullet at a MV of 1800 fps and ME of 2519 ft. lbs. The numbers at 100 yards are 1526 fps and 1810 ft. lbs. The trajectory this load in an iron sighted rifle looks like this (Cor-Bon figures): +1.33" at 50 yards, 0 at 100 yards, -5.07" at 150 yards, and -14.55" at 200 yards. For the person with a strong, modern .45-70 rifle who does not reload but wants to hunt the largest North American game, this should be the factory load of choice.
The other hot Cor-Bon load uses a 405 grain Flat Point Penetrator bullet at a MV of 1650 fps and ME of 2450 ft. lbs. The 100 yard figures are 1380 fps and 1714 ft. lbs. The Penetrator bullet is a flat point desigh with a heavy, full metal jacket. It is designed not to expand. The intended purpose of this load is a little hard for me to understand as the .45-70 is primarily a North American cartridge and most U.S. states prohibit hunting big game with non-expanding bullets. Cor-Bon descriptive literature implies, but does not clearly state, that this bullet is the equivalent of an African "solid," which are bullets intended for use on thick-skinned dangerous game. (To quote from the Cor-Bon web page: "Bone crushing power will take on anything - anywhere.") But, while this is indeed a powerful load, it falls about 1550 ft. lbs. of muzzle energy short of the minimum usually considered necessary for such game.
The third category of hot .45-70 handloads is for modern single shot rifles like the Dakota 10 and Ruger No.1. These rifles can withstand the high pressures of modern high intensity cartridges, and .45-70 reloads for these can safely go up to 50,000 cup. There are some truly brutal loads for the old .45-70 in this category (at both ends of the rifle).
The Hornady 350 grain RN bullet can be driven to 1900 fps by 53.3 grains of IMR 3031 powder, and 2100 fps by 57.5 grains of IMR 3031. The Hornady 500 grain RN bullet can be driven to a MV of 1500 fps by 44.1 grains of IMR 3031, and 1800 fps by 53.1 grains of IMR 3031. There isn't much game anywhere in the world you could not take with such loads. They make the old .45-70 more powerful and versatile than the new .450 Marlin. And the single shot rifles can use spitzer bullets, which further flattens trajectory.
I have chronographed the Barnes-X 350 grain spitzer bullet (BC .402, SD .238) at over 2100 fps from a 28" barrel. (See the Barnes Reloading Manual Number One for details.) That load has a ME of 3427 ft. lbs. At 100 yards it is still traveling at 1909 fps, and has 2832 ft. lbs. of energy. At 200 yards its velocity is 1730 fps, and its energy 2326 ft. lbs.
Zero that load to hit 3" high at 100 yards, and it strikes about 2.2" low at 200 yards. Its maximum point blank range (+/- 3") is 207 yards. It has the killing power to lay 1000 pound animals low at 200 yards. The old time buffalo hunters never had anything like that!
